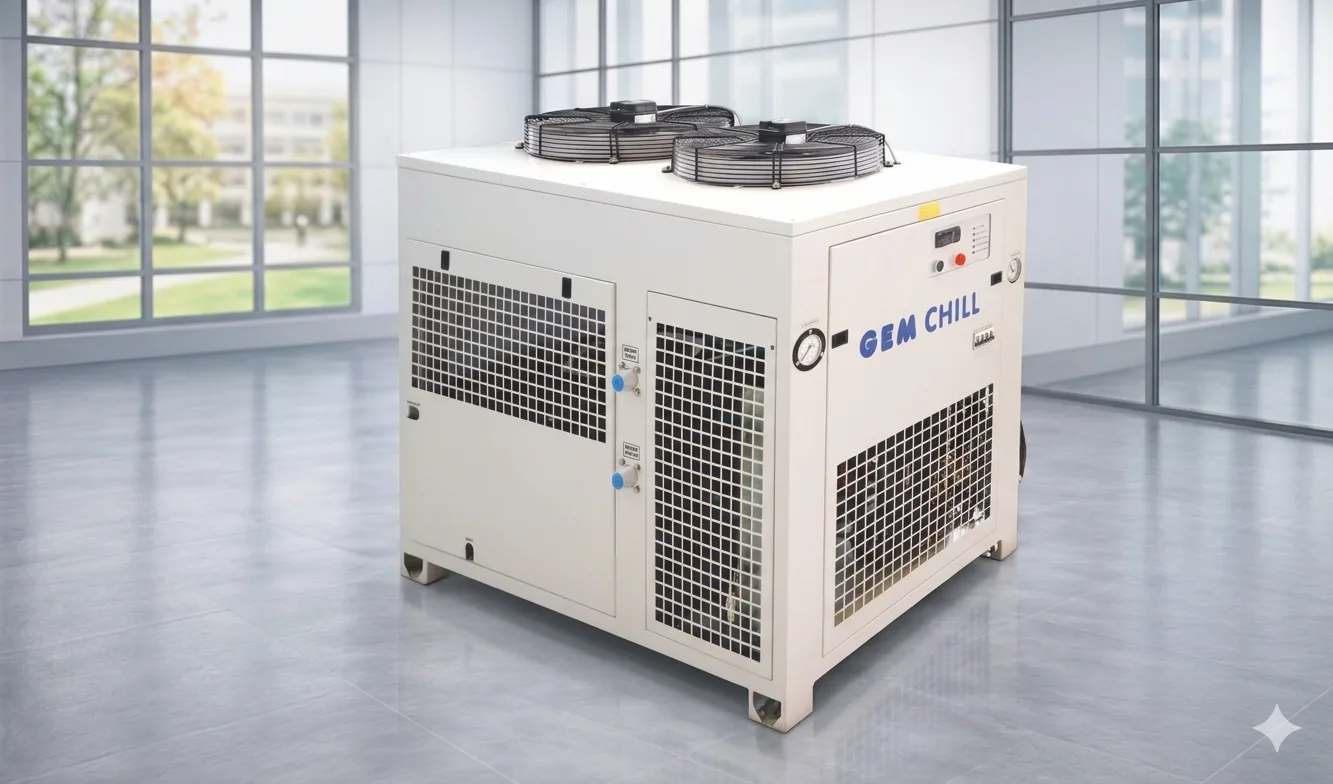

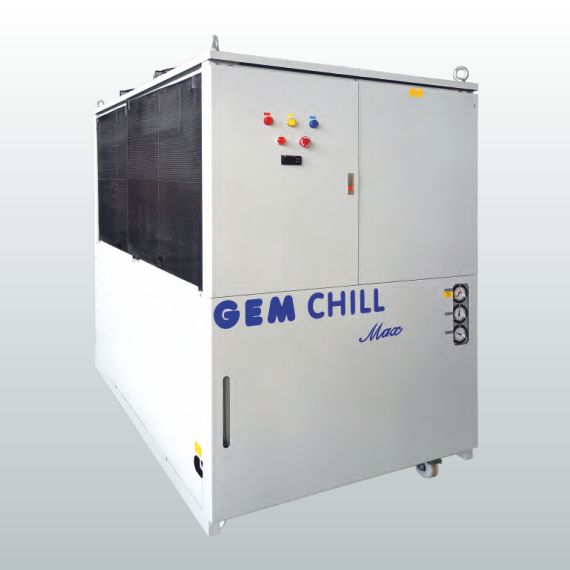

Industrial Chiller

The CHT Series Industrial Chillers are compact in size and occupy minimal space compared to other industrial air cooled chillers. They are equipped with a high-pressure pump for reliable operation and use eco-friendly R407C refrigerant. For specialized applications, CHT models are also available with water cooled condensers.

Each unit comes with a built-in closed tank for thermal mass operation, along with advanced microprocessor controls and energy efficient fans. These features ensure long-lasting performance, reduced power consumption, and maximum reliability for continuous industrial use.

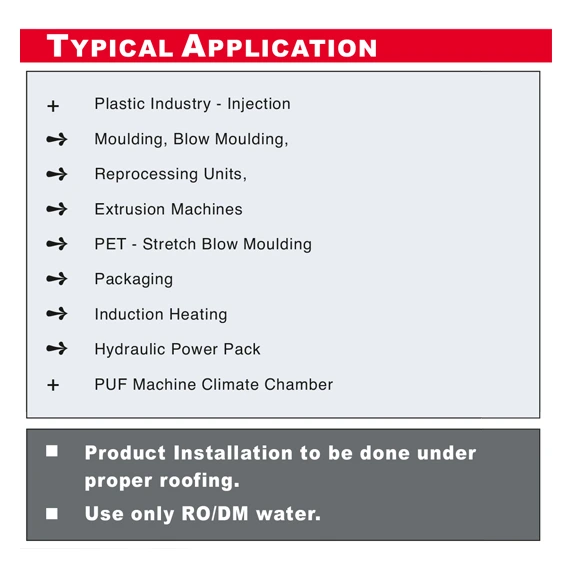

Our chillers are designed for diverse applications such as moulding, extrusion, and reprocessing units, making them a versatile choice for modern industries.

Get a free quote today or download our catalogue to explore Gem Orion Industrial Chillers.

Get a Quote Contact Us Download Catalogue

Features

Cyclic Chillers Cyclic design with optimum control of temperature (within ±3°C from set point).
Cyclic Chillers Environment Friendly - R407C.
Cyclic Chillers Suitable for operations between 5°C to 25°C.
Cyclic Chillers Wider ambient temperature (from 10°C to 45°C).
Cyclic Chillers In-built water tank made of LDBE material (SS304 Optional) .
Cyclic Chillers In-built high pressure pumps made of SS304 Impeller & SS body.
Cyclic Chillers Brazed plate heat exchangers with SS316 plates / Full Copper unique Co-axial heat exchanger.
Cyclic Chillers Pressure gauges to indicate refrigerant pressure & water pressure.
Cyclic Chillers Hermetically Sealed Scroll compressors / Reciprocating compressors.
Cyclic Chillers Well-sized condensers for high ambient operation.
Cyclic Chillers IP rated fan motors.
Cyclic Chillers Optional RS485 connectivity.
Cyclic Chillers Powder coated frame with Texture finish.
Cyclic ChillersCompact - occupies minimum space
Cyclic ChillersBuilt in insulated tank for thermal mass operation
Cyclic ChillersSturdy frame
Cyclic ChillersTop exhaust
Cyclic ChillersMicroprocessor control
Cyclic ChillersEnergy efficient fans
Cyclic Chillers Environment friendly R407C refrigerant used
Cyclic Chillers Water cooled condenser (optional)
Cyclic Chillers Optional Caster wheel mounting
Chiller Specification Sheet Base Model Capacity Refrigeration Compressor Water Pump Cooling Fan Power Supply* Water Tank In / Out Connection Dimensions Net Weight
TR kcal/h kW Type Absorbed Power kW Flow rate lpm Absorbed power kW Qty Power W Material Capacity Litres BSP LxWxH Kg
Air Cooled CHT010NT 1 3000 3.5 Recip 1.7 30 0.55 1 110 230/50/1 LDPE 30 1" 680x420x910 100
CHT020NT 2 6000 7 Recip 2.2 30 0.55 1 225 415/50/3 LDPE 50 1" 900x650x970 200
CHT030NT 3 9000 10.5 Recip 3.0 30 0.55 1 225 415/50/3 LDPE 50 1" 900x650x970 250
CHT050NT 5 15000 18 Scroll 5.2 90 1.1 2 450 415/50/3 LDPE 150 1" 1340x800x1170 370
CHT075NT 7.5 22500 25 Scroll 7.9 90 1.1 2 900 415/50/3 LDPE 150 1" 1460x800x1170 500
CHT100NT 10 30000 35 Scroll 11.0 90 1.1 2 1530 415/50/3 LDPE 300 1-1/2" 1660x1070x1240 550
CHT150NT 15 45000 52 Scroll 13.6 200 2.2 4 1800 415/50/3 LDPE 300 1-1/2" 1722x1200x1935 850
CHT200NT 20 60000 70 Scroll 22.0 200 2.2 6 2700 415/50/3 LDPE 300 1-1/2" 2000x1250x2050 1050
CHT300N 30 89600 104 Scroll 27.2 320 4 2 4400 415/50/3 SS304 300 2" 2500x1200x1710 2500
CHT400N 40 137600 165 Scroll 45.5 320 4 2 4400 415/50/3 SS304 External 500 2" 2500x1200x2040 3200
CHT500N 50 150000 175 Scroll 46.4 380 5.8 2 7400 415/50/3 500 2" 2600x1320x2040 3500
Water Cooled CHW100 13 41300 48 Scroll 7.4 90 1.1 Cooling water flow rate 120 lpm @32-33°C, 2-3 bar 415/50/3 SS304 300 2" 1400x1200x1720 600
CHW150 16 49000 57 Scroll 10 200 2.2 Cooling water flow rate 180 lpm @32-33°C, 2-3 bar 415/50/3 300 2" 1800x1200x1910 900
CHW200 26 80800 94 Scroll 17.0 200 2.2 Cooling water flow rate 240 lpm @32-33℃, 2-3 bar 415/50/3 300 2” 1800x1200x1910 1200
CHW300 33 98900 116 Scroll 20 320 4 Cooling water flow rate 240 lpm @32-33℃, 2-3 bar 415/50/3 300 2” 2500x1200x1710 2500
CHW 400 53 161600 188 Scroll 34 320 4 Cooling water flow rate 240 lpm @32-33℃, 2-3 bar 415/50/3 SS304 External 500 2” 2500x1200x2040 3200

1. ∮ - Capacity delivered at ambient of 35 - 40 & water outlet temperature of 15 with 5% variation.

2. # - Power consumed at rated condition.

3. * - Power supply, 230±5%, 50Hz for single phase(230V rated voltage),415±5%, 50Hz for three phase (415V rated voltage).

*Subject to change With design modification

Model Nomenclature : CHX

CHT - Air Cooled

CHW - Water Cooled

x x x x

Capacity in TR * 10 NT - With Tank

E- Without Tank (For Extruder,Reprocessing Application)

E-Variant available from 3TR and Above models
