Dual Channel Chiller

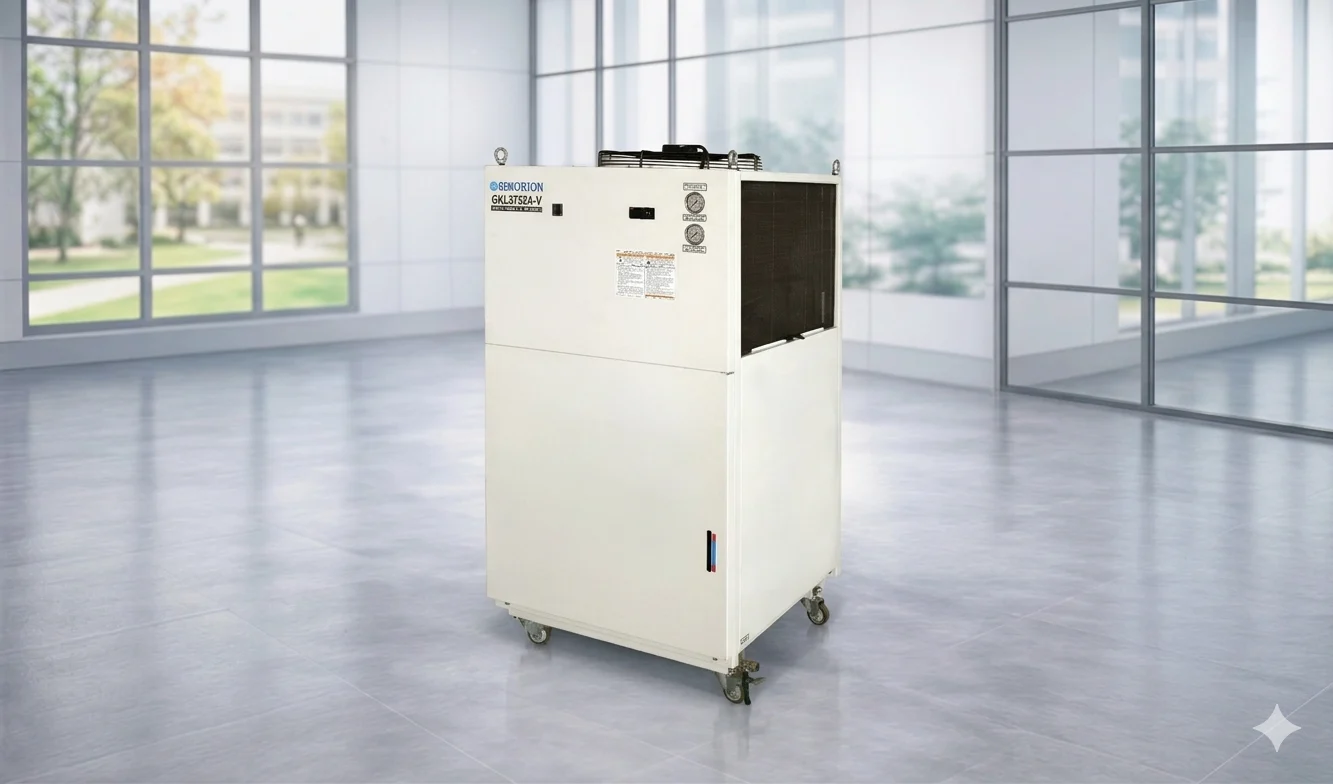

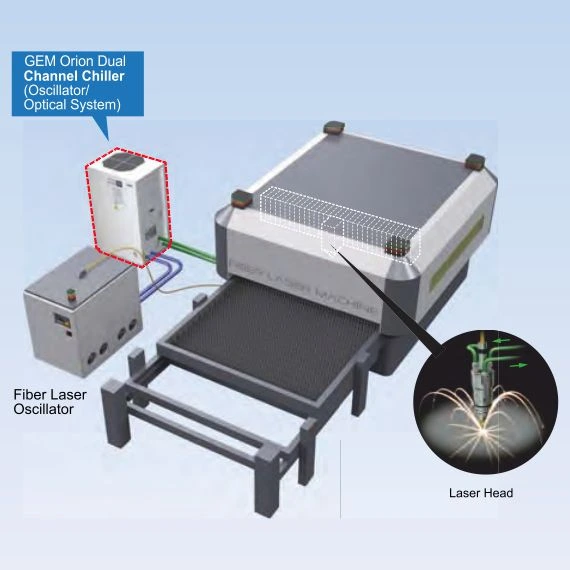

Independent water circuits in a single chiller package provide different temperature settings for the oscillator and optical systems. ORION chillers have a solid reputation and superior reliability among industrial chillers. Production has started in India that inherits quality Japanese manufacturing. Our expertise in delivering quality laser machine chillers has earned us many loyal customers.

Dual channel Chiller for Fiber Laser is a unique chiller offering varying temperature setting. We ensure supreme quality dual channel chillers, along with improved affordability as well as swift delivery timeline assurance.

As one of the customer-focused laser chiller manufacturers, our laser machine chiller prices are competitive in the market. This is also one of the key reasons that many customers prefer us for reliable and cost-effective laser machine chillers.

Download Catalogue Contact Us

Features

These unique features are not available in any of the imported chillers (or) Indian Chillers. First time in India, Gem ORION is bringing these unique and advanced chillers to the industry.

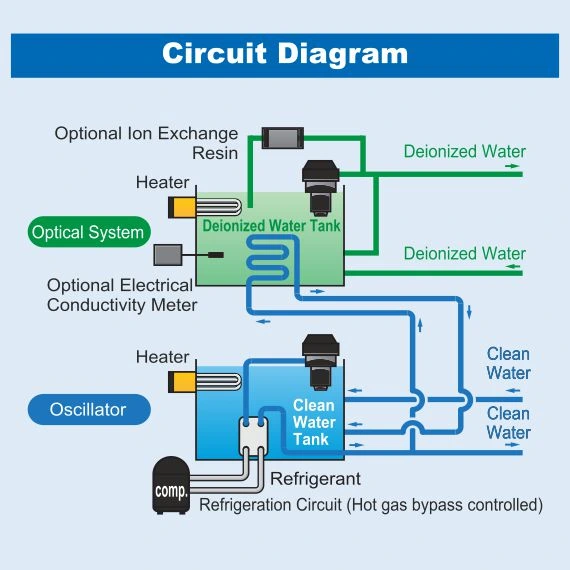

Completely isolated water circuits for Oscillator & Mirror circuit.

Precise control of temperature (within ±1°C from set point) in both Oscillator & Mirror circuits.

Environment Friendly, Energy Efficient Refrigerant - R410A (used in Developed countries & no phase out as per Montreal Protocol).

Larger Operating range (from 10 to 30°C) for Oscillator circuit & Mirror circuit to have 5 to 10°C higher temperature.

Wider ambient temperature (from 10 to 45°C).

In-built water tank made of SS304 material - 2 tanks for 2 circuits.

In-built high pressure pumps made of SS304 Impeller & SS body. Pumps can operate at as high as 6 bar / 60 m head - 2 pumps for 2 circuits.

Brazed plate heat exchangers with SS316 plates (higher thickness for longer durability).

Secondary circuit (Mirror circuit) not having any contact with Copper / brass parts anywhere in circuit.

In-built heaters to operate at low / extreme weather conditions.

Inverter Driven Fan motors to ensure uniform performance across seasons.

Chillers built on Casters for ease of mobility.

Water level gauges for both tanks.

Pressure gauges to indicate refrigerant pressure & water pressure indication of both circuits.

Hermetically Sealed Scroll compressors / Rotary compressor.

Condensers to withstand very high operating pressures.

Dust filter mesh to ensure less interruption to operation & ease of maintenance.

Remote On-off as a standard feature.

Potential free contacts for chiller status to couple with the mother machine & easy to operate from Mother machine (Laser cutting machine).

Optional RS485 connectivity.

Powder coated frame with Glossy finish.

Technical Specifications

Laser Oscillator Output					kW	0.5~0.75	1	1-5~2	3	4~6	7~8	9~12	13~15	16~20
Chiller Model					UNIT	GKL 752A-V	GKL 1502A-V	GKL 2202A-VI GKE 2202A-V	GKL 3752A-VI GKE 3752A-V	GKL 5502A-VI GKE 5502A-V	GKL 7502A-VI GKE 7502A-V	GKL 11002A-VI GKE 11002A-V	GKL 15002A-VI GKE 15002A-V	GKE 18002A-V
Cooling Capacity * 1					kW	1.5	3.7	7.7	11.2	19.3	24	34	44	45
External Dimensions (H x D x W)					mm	667x715x503	1050x900x680	1485x905x805	1684x905x805	1825x988x855	1646x1340x800	1800x920x1720	1800x920x1720	2124x915x1601
Unit Mass (Dry weight) (Approx.)					kg	57	155	180	290	310	320	490	550	600
Chilled Water	Oscillator	Circulating Water				Clean Water
		Operable Ambient Temp. Range			°C	5 to 45 / 5 to 50
		Operable Liquid Temp. Range			°C	10 to 30
		Control Precision * 4			°C	±1.0°/ ±0.5°
		Operating Water Pressure			MPa	0.1~0.3	0.1~0.35	0.3~0.5		0.35~0.55		0.35~0.6
		Operating Flow Rate			L/min	12	15~76	20~63		50~105		120~250
		Inlet and Outlet Port Size				BSP1						BSP1^1⁄4"
	Optical System
		Circulating Water				Deionized Water
		Operable Liquid Temp. Range			°C	25 to 40 (Oscillator Water Temp. Setting +5°C or higher)
		Control Precision * 4			°C	±1.0°
		Operating Water Pressure			MPa	0.3	0.15~0.45	0.3~0.45				0.3~0.65
		Operating Flow Rate			L/min	5	8~80	14~30				12~37
		Inlet and Outlet Port Size				BSP1/2"
Power Specifications		Power Source * 2			V(Hz)	1 Phase.230 ± 5%.50		3 Phase.400 ± 5%.50
		Connected Power * 1			kW	1.9	6.64	6.09/5.34	12/7.45	15.4/12.5	16.7/14.7	18.5/17.9	21.1/21	26.5
		Maximum Current * 1			A	4.1	31.9	16.47/11.98	22/16	26/20	28.3/26.25	34/35.9	56.2/46.8	50.15
		Power Supply Capacity * 3			kVA	2.6	7.33	11.4/8.3	15.8/11	18/13.8	19.65/18.18	24/24.8	38.9/32.4	34.7
Equipment Details		Compressor				Rotary type		Scroll type
		Condensor				Finned tube type, Forced air cooling
		Operation Control Method				Hot gas bypass
		Oscillator	Evaporator	Construction		Plate Type
		Oscillator	Evaporator	Material		SUS316(with copper brazing)
		Optical System	Evaporator	Construction		Tube Heat Exchanger
		Optical System	Evaporator	Material		Stainless Steel
		Oscillator	Discharge Pump	Construction		Multistage centrifugal pump
		Optical System	Discharge Pump	Construction		Multistage centrifugal pump
		Oscillator	Water Tank Capacity		L	17	20	44	70	90	90	150	150	150
		Optical System	Water Tank Capacity		L	10	10	20	27	27	27	50	50	50
		Refrigerant				R - 410A			R-407C/R-410A	R - 410A
